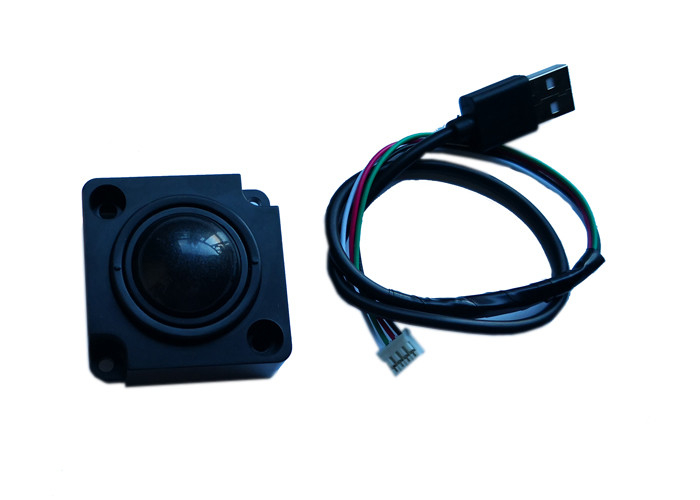

25.mm Black Optical Trackball Module With Quadrature Output for IPC

China 25.mm Black Optical Trackball Module With Quadrature Output for IPC supplier
25.mm Black Optical Trackball Module With Quadrature Output for IPC supplier 25.mm Black Optical Trackball Module With Quadrature Output for IPC supplier 25.mm Black Optical Trackball Module With Quadrature Output for IPC supplier

Large Image :  25.mm Black Optical Trackball Module With Quadrature Output for IPC

Product Details:

Place of Origin: Made in China
Brand Name: OEM
Certification: CE, FCC, ROHS
Model Number: P-25-OTB

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Inner box plus outer carton
Delivery Time: 1-2 weeks
Payment Terms: TT, PayPal, Western Union
Supply Ability: 3000pcs per month
Contact Now
Detailed Product Description
Diameter: 25.mm Or Other Color: Black, White Or Transparent
Output: USB, PS/2, Quadrature Sensor: Optical
Application: IPC Pointing Device: Trackball

25.Mm Black Optical Trackball Module With Quadrature Output For IPC



25.mm trackball module quick lead:

  • Compact rugged trackball for rear panel mounting
  • Featureing a phenolic ball with 25.mm diameter
  • Bearings for a smooth and precise cursor control
  • PTFE seal ringensures a IP65 static sealing grade
  • With resolution of 200, 500, 1000CPI optional
  • The unit has been designed to be back of panel mounted as part of OEM keyboards and consoles with restricted
    mounting space.
  • Ball colors: black, white, or transparent



WORKING ENVIRONMENT:
Operating temperature: -10 to +60 degrees
Storage temperature: -20 to +70 degrees
Operating RH: 30-90%
Atmospheric pressure: 60-106Kpa.

Reliability: MTBF>20,000h; MTTR<30min

Lifetime - Ball revolutions: >= 2 million



ELECTRONIC FEATURES:

Power supply: 5V DC+/-10%,

Protection level: IP65 static

Resolution: 500CPI default

EMC Standard: EN55022(B)

Power consuming: ≤1.00W(dynamic) ≤0.2W(static)
