Product Details:
Payment & Shipping Terms:
|
| Vandal Proof: | Yes | IP65: | Yes |
|---|---|---|---|
| Material: | Stainless Steel | Keys: | 16 Keys |
| PIN PAD: | Yes | With Metal Housing: | Yes |
| Made In China: | Yes | Color: | Metal |
| Supporting 3DES: | Yes |

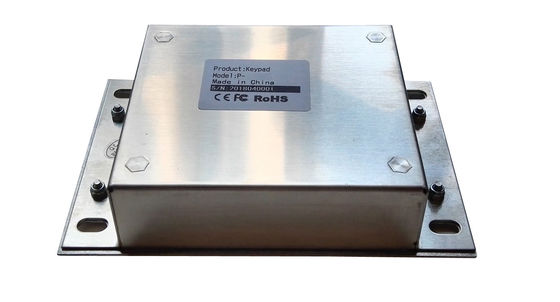

IP65 3DES encryption PIN pad panel mount industrial keyboard with numeric keys
Quick Details:
1. 16 Keys Vandal proof IP65 Stainless Steel PINPAD EPP, supporting 3DES
2. gold-on-gold key switch technology
3 Rear panel mounting
4. CE, FCC, RoHS
Features:
1. The number of keys: 16 keys
2. Key dimensions: the number keys 14.0mm x 14.0mm; 14.0mm x 14.0mm function key
3. Key interval: horizontal, vertical row, 7.0mm 5.0mm;
4. Buttons life: 2000000 times per key
5. The key pressure: 3 ~ 5 N (Newton)
6. Key stroke is: 0.45mm
7. Working voltage: 5V DC
8. Interface: RS232 or USB (RS232 simulation)
9. Data: not less than 1.5 metres in length
10. The working power consumption: working condition, the maximum current is less than 200mA, the actual power consumption is less than 1 W
11. Service life: the operation life of >10 years, the battery life of >5 years (no external power supply)
12. The panel size: 87.5mm x 91.5mm
13. Net weight: 0.7 kg (without side key function. The single side key features: net weight 0.07-0.12 kg / a)
14. Gross weight: 0.9 kg (without side key function. The single side key features: net weight 0.07-0.12 kg / a)
| Comply with safety standards: ANSI X9.8-1982/ANSI X9.9-1986 |
| High quality #304 stainless steel button |
| Waterproof, dustproof, anti riot, corrosion protection |
| Panel button and the casing can be customized (Braille and graphics support cap) |
| Support for 2 x 4 side key features |
| Support MAC, DES and 3DES |
| The numbers and function keys can be convenient for people to use the special visual relief |
