| Panel Mount: | Yes | USB Or PS2: | Optional |
|---|---|---|---|
| Material: | Stainless Steel | Panel Mounting: | Rear Panel Mounting |
| Military App: | Yes | Touchpad: | Optional |
| Military Keyboard: | Yes | Black Color Keyboard: | Optional |

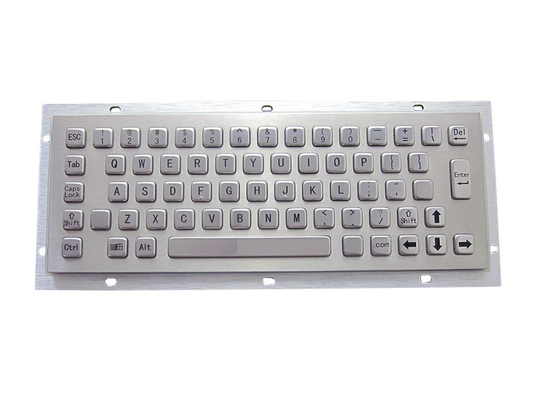

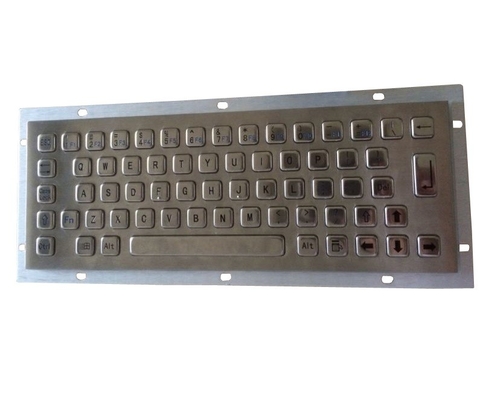

panel mount stainless steel keyboard for military portable PC working -20 celsius degree
- 64keys military stainless steel keyboard, IP65 industrial vandal proof metal keyboard for kiosk, CNC application etc.
- With rough sealed touchpad optional

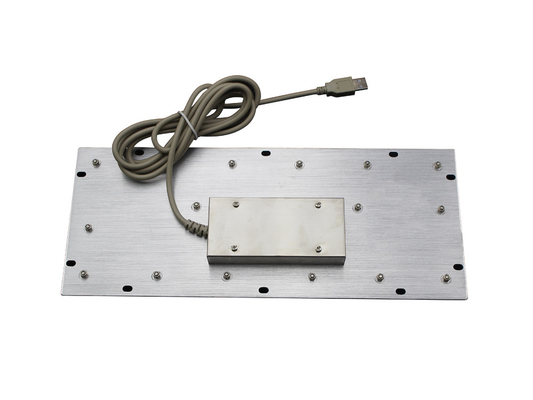

- Hole mounting solution, rear panel mounting
- USB / PS2 avaialable
- Any language layout available
- Long key stroke with 2mm travel stroke,
- Mounting Dimension: 300 x 110 mm
- NEMA4 durable keyboard, IK7
- Key actuation force: 120g/1N
- Customizable layout upon customers request
- Gross weight: 2.0kg
- Operation temperature: -10℃ to +50℃, can be extended to -40℃ to +80℃
- Storage temperature: -40℃ to +80℃
| Specifications | |
| Material | Front panel & Keys: Brushed stainless steel |
| Back panel: Aluminum alloy | |
| Touchpad: Synaptics high-sensitivity touchpad | |
| Electrical Data | Power supply voltage: DC 5 V 5% |
| Current rating: 20 mA | |
| Touchpad resolution:1000dpi | |
| Interface: USB or PS2 | |
| EMC compliant. Emission: EN 50081-1 Immunity: EN 50082-1 |
|
| FCC: Part 15, class B | |
| Safety: EN 60950, CE compliant | |
| Environmental Characteristics | Operating temperature: -20 C to + 60 C |
| Storage temperature: - 40 C to + 80 C | |
| Saline mist: 96 hours, IEC 60512-6 | |
| Damp heat test at + 40 C: 21 days, IEC 60512-6 | |
| Dry heat test at + 85 C: 10 days, IEC 60512-6 | |
| Mechanical Data | Actuation force for key:120±15g |
| Key travel: 2.0mm | |
| Lifetime (cycles): Min 5, 000, 000 actuations | |
| Sealing protection: IP65/NEMA4X from the front | |
| Vibration resistance: 5 Hz -200 Hz, IEC 60512-4 | |
| Shock resistance: 3 axis 150 m/s - 11 ms, IEC 60512-4 | |
| Operation system | PS2: Win NT4, 98SE, 98ME, 2000, XP |
| USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX | |
