Product Details:
Payment & Shipping Terms:
|
Language: | Bilingual | Keys: | 64 |
---|---|---|---|
Military Keyboard: | Yes | Material: | Metal |
Output: | USB, PS/2 | Application: | For Mining Oil |

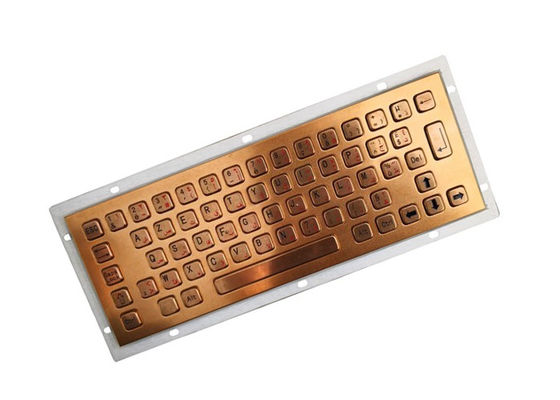

Bilingual 64 Key Military Level Metal Keyboard For Mining Oil
- 64 keys military level stainless steel keyboard
- IP65 industrial vandal proof metal keyboard for kiosk, CNC application etc.
- With rough sealed touchpad optional, or with optical / laser trackball
- Hole mounting solution, rear panel mounting
- USB / PS2 available
- Any language layout available
- Keyboard Color: nature stainless steel, black titanium, golden
- Long key stroke with 2mm travel stroke,
- Mounting Dimension: 300 x 110 mm
- NEMA4, IK7
- Key actuation force: 120g/1N
- Customizable layout upon customers request
- Gross weight: 2.0kg
- Operation temperature: -10℃ to +50℃, can be extended to -40℃ to +80℃
- Storage temperature: -40℃ to +80℃
Panel Mount Military Keyboard Spec:
Specifications | |
Material | Front panel & Keys: Brushed stainless steel |
Back panel: Aluminum alloy | |
Touchpad: Synaptics high-sensitivity touchpad | |
Electrical Data | Power supply voltage: DC 5 V 5% |
Current rating: 20 mA | |
Touchpad resolution:1000dpi | |
Interface: USB or PS2 | |
EMC compliant. Emission: EN 50081-1 Immunity: EN 50082-1 |
|
FCC: Part 15, class B | |
Safety: EN 60950, CE compliant | |
Environmental Characteristics | Operating temperature: -20 C to + 60 C |
Storage temperature: - 40 C to + 80 C | |
Saline mist: 96 hours, IEC 60512-6 | |
Damp heat test at + 40 C: 21 days, IEC 60512-6 | |
Dry heat test at + 85 C: 10 days, IEC 60512-6 | |
Mechanical Data | Actuation force for key:120±15g |
Key travel: 2.0mm | |
Lifetime (cycles): Min 5, 000, 000 actuations | |
Sealing protection: IP65/NEMA4X from the front | |
Vibration resistance: 5 Hz -200 Hz, IEC 60512-4 | |
Shock resistance: 3 axis 150 m/s - 11 ms, IEC 60512-4 | |
Operation system | PS2: Win NT4, 98SE, 98ME, 2000, XP |
USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX |
