Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel | Kiosk Keyboard: | Yes |
|---|---|---|---|
| Flat Keyboard: | Yes | Mounting: | Panel Mounting |
| Waterproof: | IP65 | Mouse: | Optional |
| Interface: | USB, PS2 |

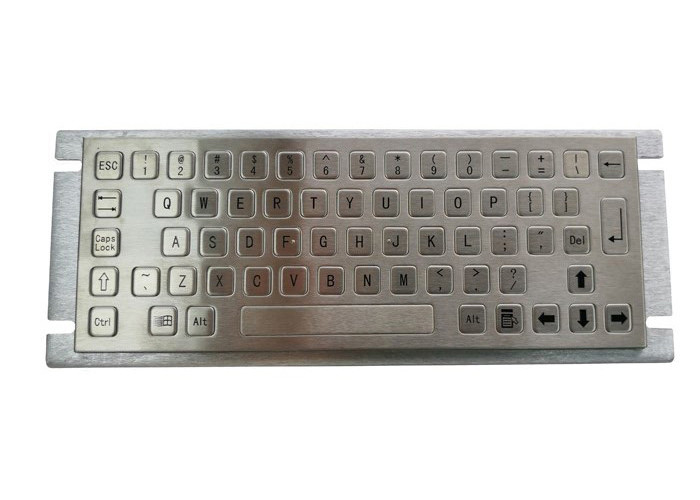

IP65 dynamic industrial kiosk keyboard by vandal proof stainless steel
1. for the professional industrial application
2. panel mounting solution
3. extremely flat key profile with nice design
4. waterproof metal keyboard
5. dust proof metal keyboard
6. vandal proof metal keyboard
7. factory price to support global customers
| Mechanical: | |
| Actuator/keys |
64 keys, 2.0mm thickness super quality SUS304 brushed stainless steel bulge keys. |
| Key top style | Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available |
| Key Size |
14.0mm x 14.0mm for normal keys 14.0mm x 28.0mm for enter key 14.0mm x 100.0mm for space bar. |
| Key travel | 0.45mm |
| Switch life | more than 5 million of operations |
| Actuation Force |
2.0N+/-0.1N for key 14.0mm x 14.0mm (pressure point) 4.0N+/-0.1N for key 14.0mm x 28.0mm (pressure point) |
| Front Plate | 1.5mm thickness super quality brushed stainless steel |
| Back Plate | 3.0mm thickness brushed & oxidized aluminium |
| G.W. | 1.30KGs |
| Dimensions | 295.0mm x 105.0mm (front panel), 330.0mm x 120.0mm (back panel) |
| Electrical: | |
| Voltage | +5V DC +/-5% |
| Current Rating | appr. 20mA |
|
EMC Standard: |
It is compliance with the council IEC 61000-4-2:2008; IEC 61000-4-3:2006+AI:2007+A2:2010； IEC 61000-4-4:2004 |
| EMI: | EN 55022: 2010 |
| EMS: | EN 55024:2010 |
| Lifespan | > 5 years |
| Switch Contact Material: | Gold-on-Gold key switch technology PCB. |
| Interface: | PS2, USB available. |
| OS: | All windows, Linux, Unix, Mac OSX |
