Product Details:
Payment & Shipping Terms:
|
| Material: | Harded Resin Ball | Color: | Black Or Transparent |
|---|---|---|---|
| Diameter: | 50.mm | Interface: | USB, PS/2 |
| ESD: | Yes | Resolution: | 400-800DPI |

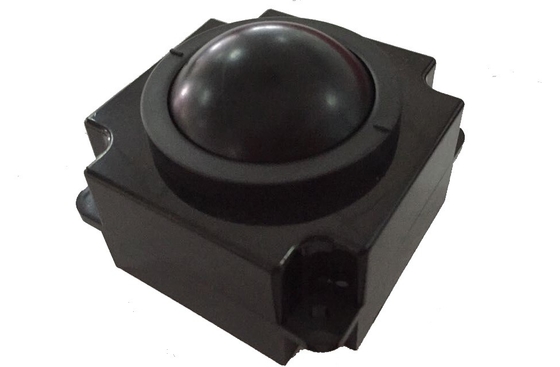

50.mm black mechanical trackball module with 400DPI or 800DPI, USB interface
- IP65 50.mm black trackball module with adjustable resolution for industrial / marine application
- With rugged harden ABS material,
- With professional ESD protection
- With resolution of 400DPI, 800DPI mechanical trackball module
- USB / PS2 cable available
- Optical trackball is optional
- Any customs color is available
ELECTRONIC FEATURES:
Power supply: 5V DC+/-10%,
Protection level: IP65 static
Resolution: 400Dpi / 800Dpi
EMC Standard: EN55022(B)
Power consuming: ≤1.00W(dynamic) ≤0.2W(static)
WORKING ENVIRONMENT:
| Operating temperature: | -10 to +60 degrees |
| Storage temperature: | -20 to +70 degrees |
| Operating RH: | 30-90% |
| Atmospheric pressure: | 60-106Kpa. |
| Reliability: | MTBF>20,000h; MTTR<30min |
