Product Details:
Payment & Shipping Terms:
|
| Application: | Industrial | Type: | Wired |
|---|---|---|---|
| Products Status: | Stock | Style: | Standard |
| Interface Type: | USB|PS/2 | Key Travel: | Short Stroke |
| Waterproof: | Yes | Trackball: | 38.mm Mechanical Trackball |
| Panel Mounting: | Yes | Mouse Buttons: | 2 Keys, Left & Right |
| Keys: | 16 Keys | Buttons Supply: | Available |
| Panel Supply: | Available |

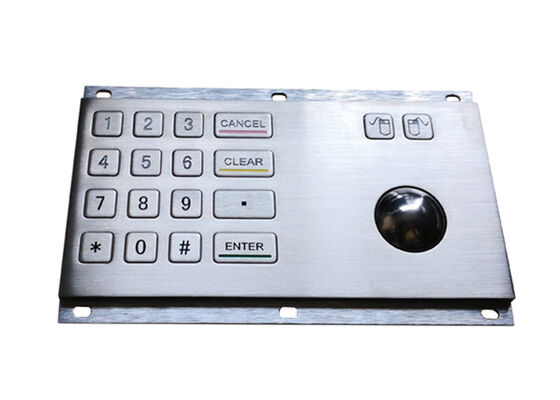

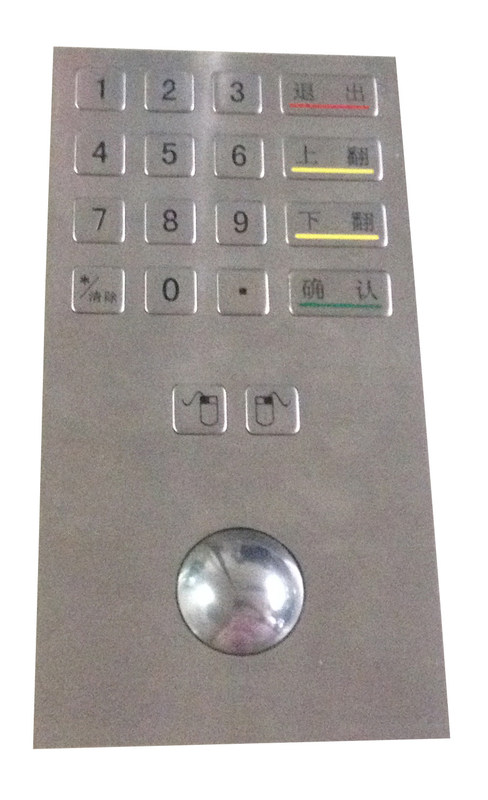

Short Stroke Waterproof Industrial Metal Keypad with 38.mm Mechanical Trackball
- 16 key vandal proof water proof metallic keypad with 38.mm trackball optional with high-quality 304# stainless steel
- Rugged weather proof special customs keypad with trackball mouse buttons
- Voltage: passive PIN interface or +5 DC volts +/-5%
- Standby current: about 20 mA
- Contact material: Graphite / gold contacts
- Interface: PS2, RS232, USB optional.
- Key size: a common key size 14 mm x 14 mm
- Key trval: 0.45 mm
- The trigger pressure: 2 bovine cattle +/-0.1
- Gross weight: 1.0KG
- Compatible operating system:
- PS2/RS232: Win NT4, 98SE, 98ME, 2000, XP, VISTA, WINDOWS 7;
- USB: Win 98SE, 98ME, 2000, XP, VISTA, WINDOWS 7 and Mac OS9 / OSX.
- Buttons life: more than 1000000 times the trigger
- Operating life: > 5 years
- Mean time between failure (MTBF): more than 20000 hours
- Mean time to repair (MTTR): less than 30 minutes
- Operating temperature: -10 degrees centigrade ~ +60 degrees Celsius
- Storage temperature: -20 degrees centigrade ~ +70 degrees Celsius
- Operating relative humidity: 5~90% (condensation)
- Atmospheric pressure: 60-106Kpa
