Product Details:
Payment & Shipping Terms:
|
| Type: | Wired | Interface Type: | USB |
|---|---|---|---|
| DPI: | 800 | Tracking Method: | Optical |
| Hand Orientation: | Both Hands | Products Status: | Stock |
| Application: | Built-in | Style: | Waterproof |
| Color: | Red, Or Black | Diameter: | 34.mm Or Other |
| Interface: | USB Or PS/2 Or Other | Wired: | Yes, USB, PS/2 |

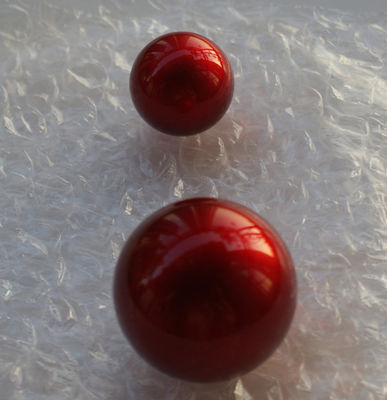

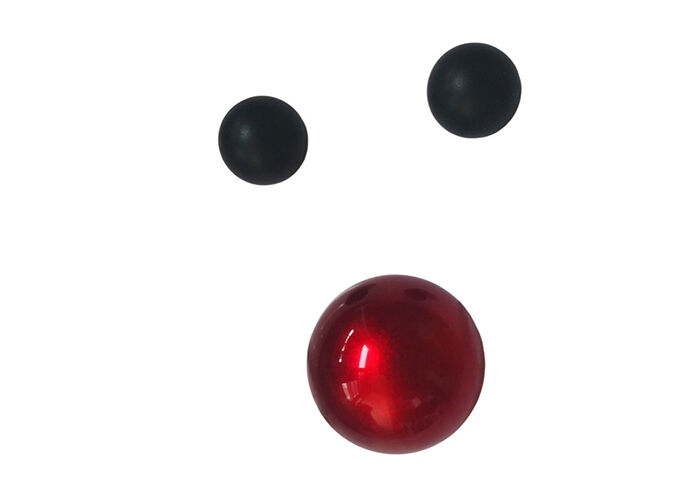

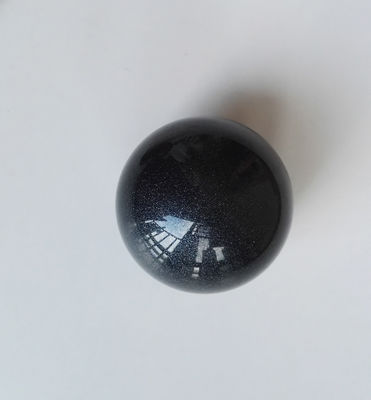

Rugged 34.mm quality black optical trackball with 800 DPI for ultrasound medical device

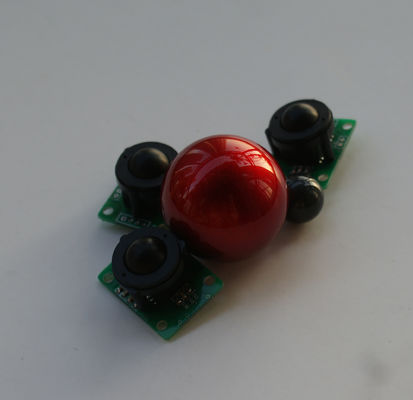

- IP68 34.0mm trackball module with adjustable resolution for industrial / marine application
- Semi-transparent ball with backlit available
- With ESD protection
- With resolution of 400-1200DPI trackball module
- USB / PS2 cable available
- Other custom-made trackball is available
ELECTRONICS:
Power supply: 5V DC+/-10%,
Protection level: IP65 static
EMC Standard: EN55022(B)
Power consuming: ≤1.00W(dynamic) ≤0.2W(static)
WORKING CONDITION:
| Operating temperature: -10 to +60 degrees |
| Storage temperature: -20 to +70 degrees |
| Operating RH: 30-90% |
| Atmospheric pressure: 60-106Kpa. |
| Reliability: MTBF>20,000h; MTTR<30min |
